Timing Chain

WARNING: This page is about a different variant/trim than selected.

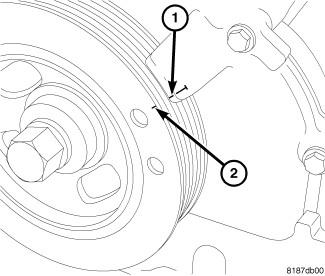

Fig 1: TDC

Courtesy of CHRYSLER LLC

Set engine to TDC.
Remove timing chain cover. See Engine/Valve Timing/COVER(S), Engine Timing - Removal .

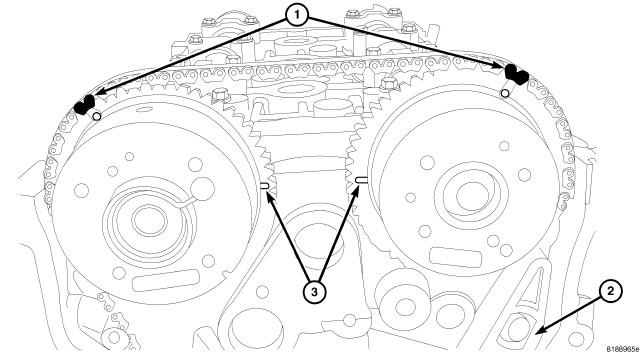

Fig 2: Timing Chain Timing Marks
Courtesy of CHRYSLER LLC

NOTE: If the timing chain plated links can no longer be seen, the timing chain links corresponding to the timing marks must be marked prior to removal if the chain is to be reused.
Mark chain link (1) corresponding to camshaft timing mark.

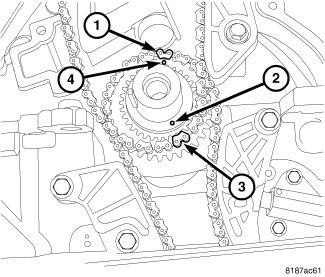

Fig 3: Crankshaft Timing Marks
Courtesy of CHRYSLER LLC
Mark chain link (3) corresponding to crankshaft timing mark (2).

Fig 4: Timing Drive
Courtesy of CHRYSLER LLC
Remove timing chain tensioner (5). See Engine/Valve Timing/TENSIONER, Engine Timing - Removal .
Remove timing chain (2).
