Integrated Control Unit (ICU): Disassembly: Disassembly

Fig 1: ICU Mounting Bolt

Courtesy of CHRYSLER LLC

1 - ICU

2 - MOUNTING BOLT

3 - MOUNTING BRACKET

1. If the mounting bracket (3) needs to be removed from the ICU, remove the single mounting bolt (2), then slide the ICU's mounting pins out of the grommets in the bracket and remove the bracket.

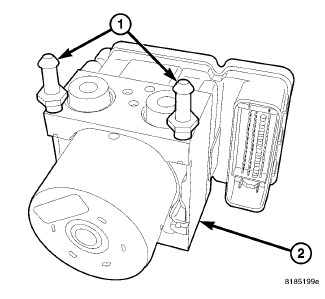

   Fig 2: ICU Mounting Pins

   Courtesy of CHRYSLER LLC
2. Remove the mounting pins from the ICU.
   Fig 3: ABM Mounting Screws - With Traction Control

   Courtesy of CHRYSLER LLC

   1 - MOUNTING SCREWS

   2 - ABM

3. Remove the four screws (1) attaching the ABM (2) to the HCU.
   Fig 4: ABM Assembly To HCU

   Courtesy of CHRYSLER LLC

   1 - ABM

   2 - HCU

   3 - SOLENOID VALVE STEM

4. Separate the ABM (1) from the HCU (2).
