Circuit Schematic

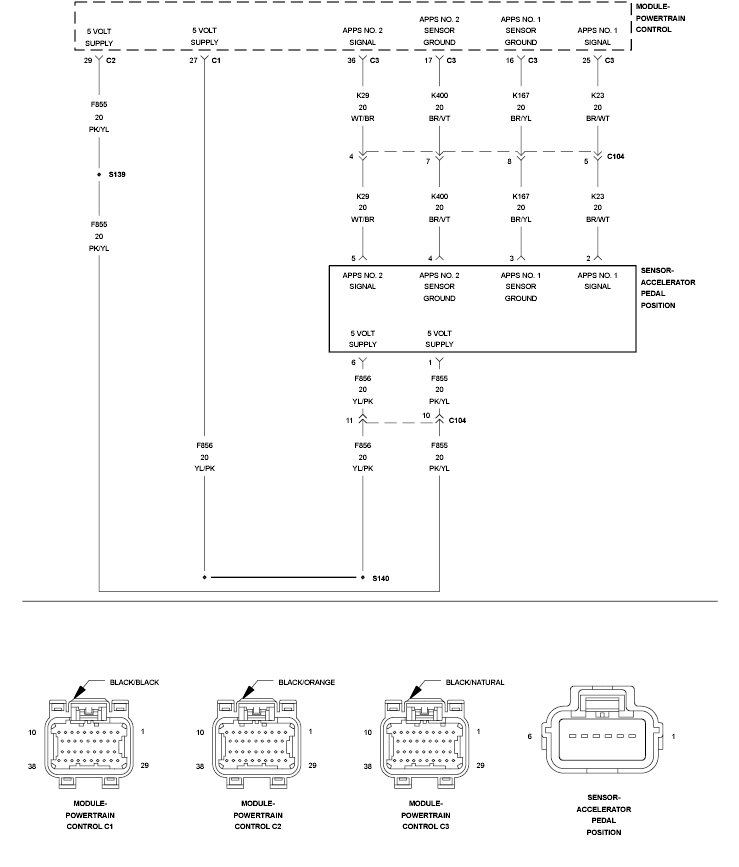

Fig 1: Accelerator Pedal Position Sensor Circuit Schematic

GC0120438

Courtesy of CHRYSLER LLC
