Home >> Jeep >> 2009 >> Commander Overland, RWD >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P0197 To P0330 - NGC >> P0204-Fuel Injector 4 Circuit >> Notes

P0204-Fuel Injector 4 Circuit: Notes

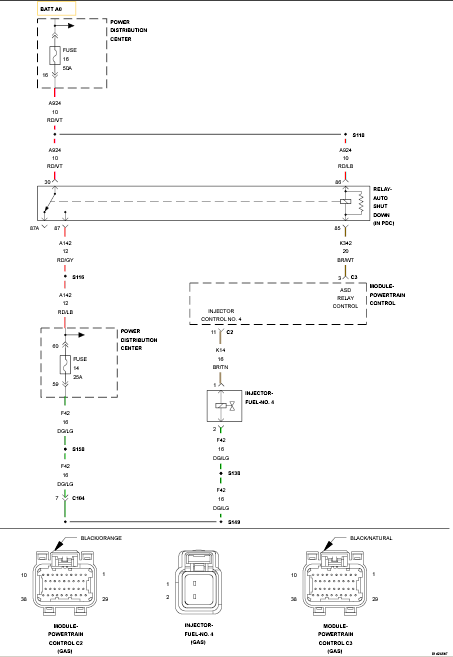

Fig 1: Fuel Injector Circuit

GC0132713

Courtesy of CHRYSLER LLC
