SWITCH, Overhead Console: Removal: Removal

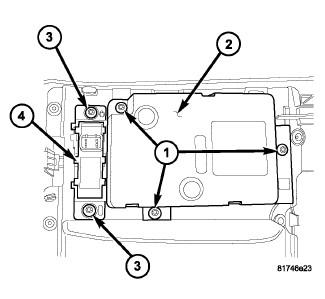

Fig 1: Removing/Installing Power Sunroof Switch

Courtesy of CHRYSLER LLC

1. Disconnect and isolate the battery negative cable.
2. Remove the overhead console from the vehicle. Refer to Electrical - Message Systems/Overhead Console - Removal .
3. Remove the screws (3) attaching the switch (4) to the overhead console.
4. Remove the switch (4) from the overhead console.
