MANIFOLD, Intake: Installation: Installation
WARNING: This page is about a different variant/trim than selected.
- Install intake manifold gaskets.
- Install intake manifold.

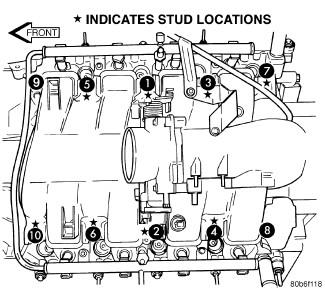

- Install intake manifold retaining bolts and tighten in sequence shown in Fig 1 to 12 N.m (105 in. lbs.).
- Install left and right radio suppressor straps.
- Install throttle body assembly.
- Install fuel rail. Refer to Fuel System/Fuel Delivery/RAIL, Fuel - Installation .
- Install ignition coils. Refer to Electrical - Ignition Control/Ignition Control/COIL, Ignition - Installation .
- Install coolant temperature sensor. Refer to Cooling/Engine/SENSOR, Coolant Temperature - Installation .
- Connect electrical connectors for the following components:
- Manifold Absolute Pressure (MAP) Sensor
- Electronic Throttle Control (ETC)
- Intake Air Temperature (IAT) Sensor
- Coolant Temperature (CTS) Sensor
- Ignition coils
- Fuel injectors
- Install top oil dipstick tube retaining bolt and ground strap.
- Install generator including electrical connections. Refer to Electrical - Engine Systems/Charging/GENERATOR - Installation .
- Connect Vapor purge hose, Brake booster hose, Positive crankcase ventilation (PCV) hose.
- Install air conditioning compressor including electrical connections.
- Fill cooling system. Refer to Cooling - Standard Procedure .
- Install accessory drive belt. Refer to Cooling/Accessory Drive/BELT, Serpentine - Installation .
- Install air cleaner housing and throttle body resonator. Tighten resonator bolts 5 N.m (44 in. lbs.).
- Connect negative cable to battery.
