DAMPER, Vibration: Removal: Removal

WARNING: This page is about a different car, the 2009 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

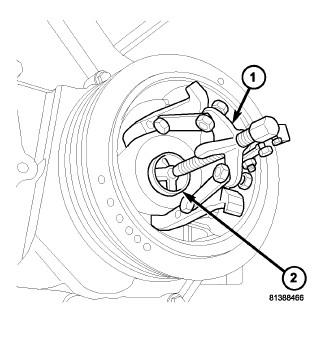

Fig 1: CRANKSHAFT DAMPER REMOVAL
GC0081772Courtesy of CHRYSLER LLC
1 - 3-Jaw Puller 1023
2 - Crankshaft Insert 8513A
  1. Disconnect negative cable from battery.
  2. Remove accessory drive belt. Refer to Cooling/Accessory Drive/BELT, Serpentine - Removal .
  3. Drain cooling system. Refer to Cooling - Standard Procedure .
  4. Remove radiator upper hose.
  5. Remove fan shroud. Refer to Cooling/Engine/FAN, Cooling - Removal .
  6. Remove crankshaft damper bolt.
  7. Remove damper using Crankshaft Insert 8513A and Three Jaw Puller 1023.
