Diagnostic Test

ACTIVE DTC
1. Start the engine and allow it to reach normal operating temperature.
  WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in possible serious or fatal injury.

  NOTE: Diagnose and repair any system voltage DTCs before continuing with this test.
2. With the scan tool, select View DTCs.
  Is the DTC Active at this time?

  Yes
  - Go to step 2
  No
  - Refer to the INTERMITTENT CONDITION Diagnostic Procedure. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
ENGINE OIL TEMP SENSOR

Fig 1: Engine Oil Temperature Sensor Harness Connector
Courtesy of CHRYSLER LLC
1. With the scan tool, clear the DTC.
2. Turn the ignition off.
3. Disconnect the Engine Oil Temp Sensor harness connector.
4. Connect a jumper wire between the (G224) Engine Oil Temp Signal circuit and the (K900) Sensor ground circuit in the Engine Oil Temp Sensor harness connector.
5. Ignition on, engine not running.
6. With a scan tool, select View DTCs.
  Does the P0197-ENGINE OIL TEMPERATURE SENSOR CIRCUIT LOW DTC set?

  Yes
  - Verify that there is good pin to terminal contact in the EOT Sensor and Control Module connectors. Replace the Engine Oil Temperature Sensor if no problems were found with the connectors.
  - Perform the POWERTRAIN VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Go to step 3
    NOTE: Remove the jumper wire before continuing.
(G224) ENGINE OIL TEMP SIGNAL CIRCUIT SHORTED TO VOLTAGE

Fig 2: Measuring Voltage On (G24) Engine Oil Temp Signal Circuit In Engine Oil Temp Sensor Harness Connector
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the C2 and C3 PCM harness connectors.
3. Ignition on, engine not running.
4. Measure the voltage on the (G224) Engine Oil Temp Signal circuit in the Engine Oil Temp Sensor harness connector.
  Is there any voltage present?

  Yes
  - Repair the short to voltage in the (G224) Engine Oil Temp Signal circuit.
  - Perform the POWERTRAIN VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Go to step 4
(G224) ENGINE OIL TEMP SIGNAL CIRCUIT OPEN

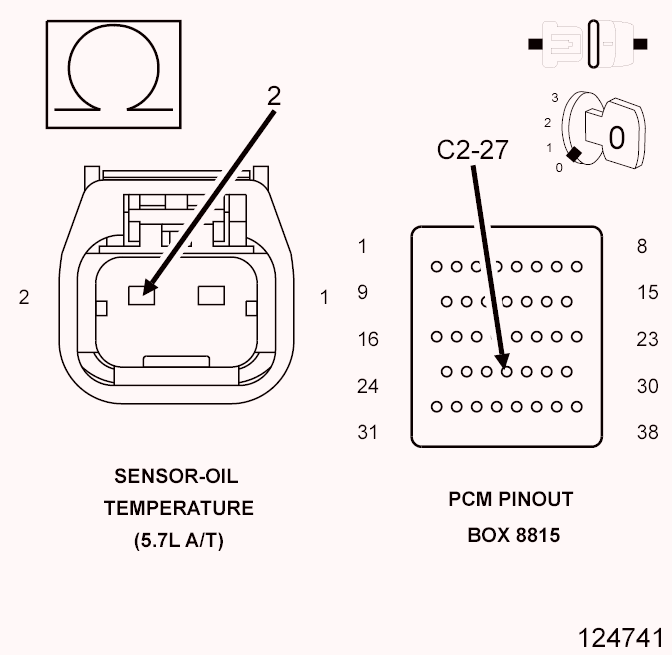

Fig 3: Checking EOT Sensor Signal Circuit For High Resistance
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
  CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connection. Install PCM Pinout Box 8815 to perform diagnosis.
2. Measure the resistance of the (G224) Engine Oil Temp Signal circuit from the Engine Oil Temp Sensor harness connector to the appropriate terminal of special tool #8815.
  Is the resistance below 5.0 ohms?

  Yes
  - Go to step 5
  No
  - Repair the open in the (G224) Engine Oil Temp Signal circuit.
  - Perform the POWERTRAIN VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
(K900) SENSOR GROUND CIRCUIT OPEN

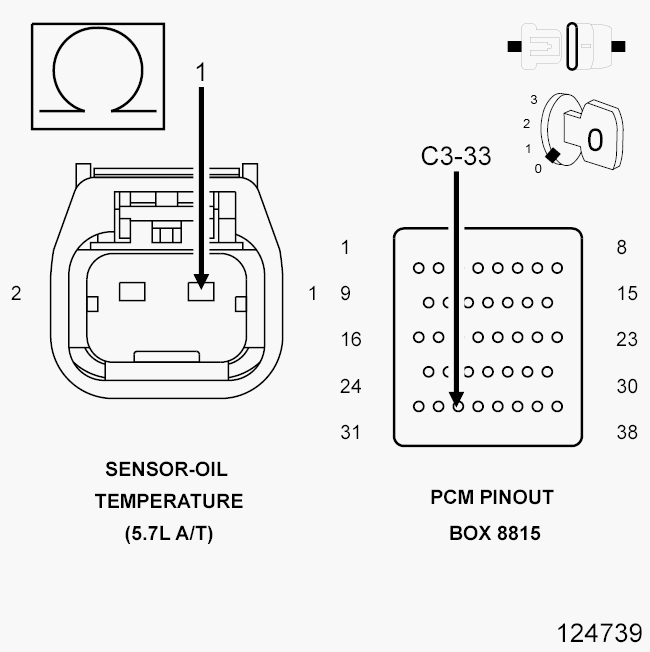

Fig 4: Checking EOT Sensor Ground Circuit For High Resistance
Courtesy of CHRYSLER LLC
1. Measure the resistance of the (K900) Sensor ground circuit from the Engine Oil Temp Sensor harness connector to the appropriate terminal of special tool #8815.
  Is the resistance below 5.0 ohms?

  Yes
  - Go to step 6
  No
  - Repair the open in the (K900) Sensor ground circuit.
  - Perform the POWERTRAIN VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
POWERTRAIN CONTROL MODULE (PCM)
1. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Engine Oil Temperature Sensor and the Powertrain Control Module (PCM).
2. Look for any chafed, pierced, pinched, or partially broken wires.
3. Look for broken, bent, pushed out or corroded terminals. Verify that there is good pin to terminal contact in the Sensor and Control Module connectors.
4. Refer to any Technical Service Bulletins that may apply.
  Were there any problems found?

  Yes
  - Repair as necessary.
  - Perform the POWERTRAIN VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Replace and program the Powertrain Control Module per Service Information.
  - Perform the POWERTRAIN VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
