MODULE, Traffic: Installation: Installation

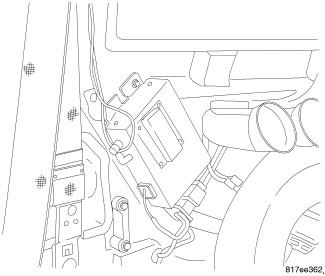

Fig 1: Identifying Traffic Message Center Module

Courtesy of CHRYSLER LLC

1. Install the module and fasteners.
2. Connect the electrical connectors.
3. Install the rear quarter trim panel. Refer to Body/Interior/PANEL, Quarter Trim - Installation .
4. Connect the battery negative cable.
