Circuit Schematic

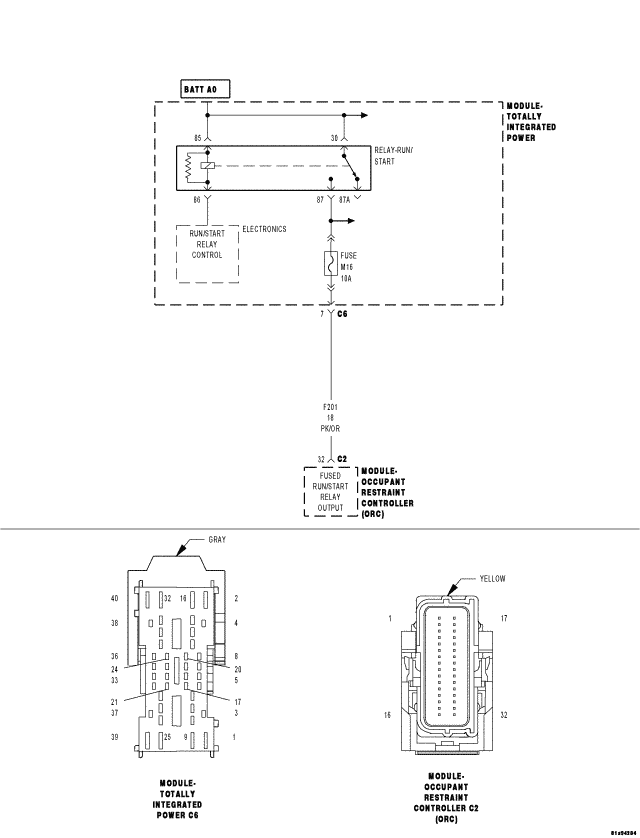

Fig 1: Fused Run Start Relay Output Circuit Schematic

GC0061859

Courtesy of CHRYSLER LLC
