Windshield Washer Pump Connector End View

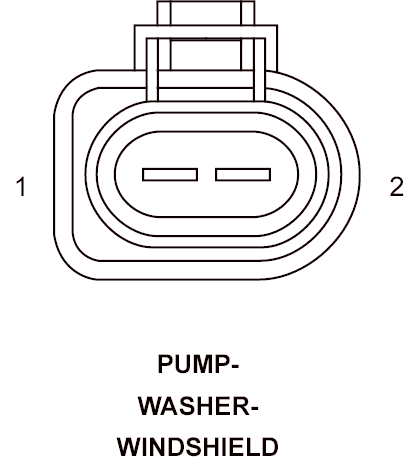

PUMP-WASHER-WINDSHIELD - 2 WAY FEMALE

GKK880269Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 W20 16BR/YL REAR WASHER PUMP MOTOR CONTROL
2 W10 16BR FRONT WASHER PUMP MOTOR CONTROL
