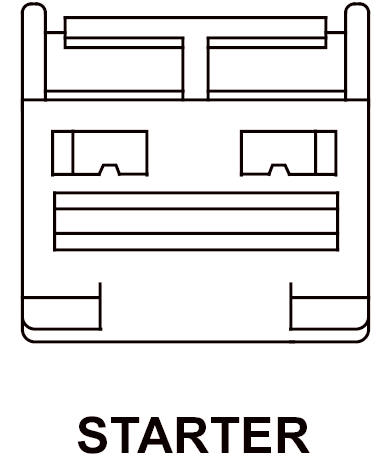

Starter Connector End View

STARTER - 1 WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	T750 12YL/GY	STARTER RELAY OUTPUT
