Power AC Outlet Connector End View

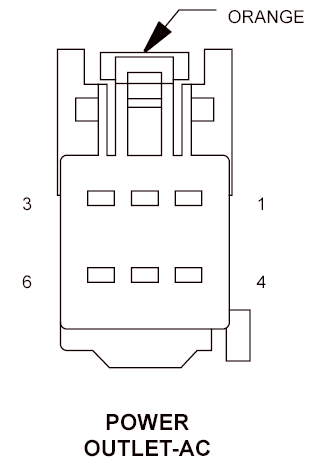

POWER OUTLET-AC - ORANGE 6 WAY FEMALE

GKK880267Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 P801 18LG 110 VOLT AC LINE 1
2 - -
3 - -
4 P802 18LG/OR 110 VOLT AC LINE 2
5 - -
6 - -
