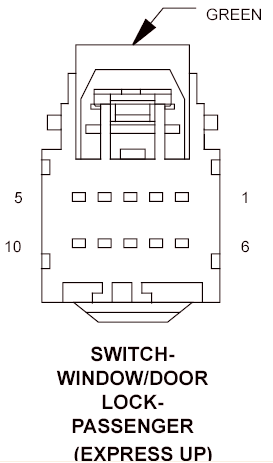

Passenger Window Switch/Door Lock Switch (Express Up) Connector End View
SWITCH-WINDOW/DOOR LOCK-PASSENGER - GREEN 10 WAY (EXPRESS UP) FEMALE
| CAV | CIRCUIT | FUNCTION |
| 1 | - | - |
| 2 | E34 20OR/TN | SWITCH ILLUMINATION DRIVER |
| 3 | F306 18DB/PK | FUSED RUN/ACCESSORY RELAY OUTPUT |
| 4 | Q936 20OR/LG | PASSENGER WINDOW EXPRESS SWITCH RETURN |
| 5 | - | - |
| 6 | - | - |
| 7 | - | - |
| 8 | G160 20VT/LG | PASSENGER DOOR LOCK SWITCH MUX |
| 8 | G160 20VT/DG | PASSENGER DOOR LOCK SWITCH MUX (RHD) |
| 9 | Q336 20OR/GY | PASSENGER WINDOW EXPRESS SWITCH MUX |
| 10 | - | - |
