PRNDL Lamp Connector End View

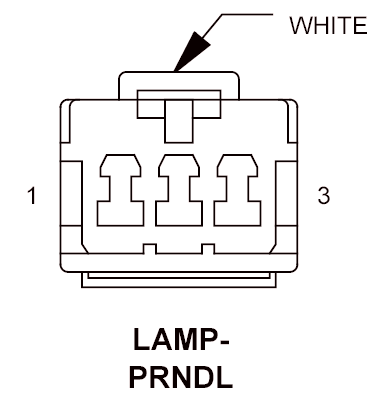

LAMP-PRNDL - WHITE 3 WAY

GKK880162Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 E12 20OR/GY PANEL LAMPS DRIVER
2 - -
3 Z910 18BK GROUND (HIGHLINE/BASE LHD DIESEL)
3 Z910 20BK GROUND (MIDLINE/EXCEPT BASE LHD DIESEL)
