Left Front Fog Lamp Connector End View

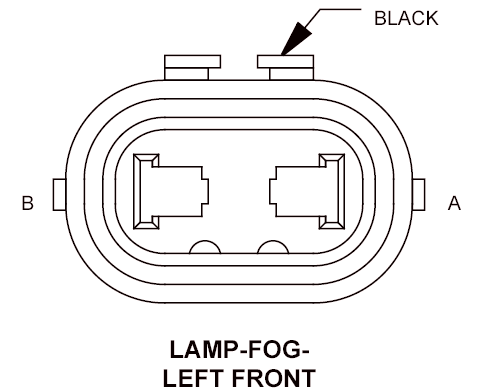

LAMP-FOG-LEFT FRONT - BLACK 2 WAY

GKK880148Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
A L89 18WT/YL LEFT FRONT FOG LAMP CONTROL
B Z907 18BK/WT GROUND
