HVAC Assembly (Automatic Temperature Control) Connector End View (C2)

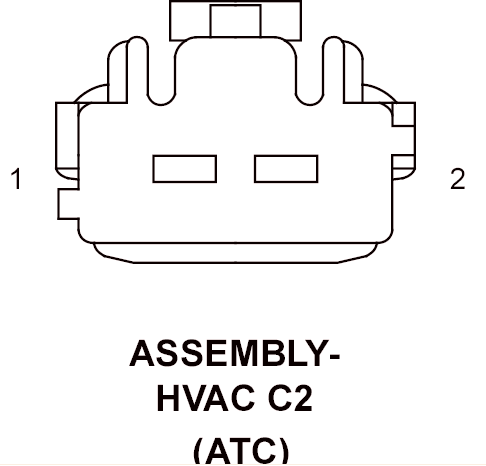

ASSEMBLY-HVAC C2 - 2 WAY (ATC) FEMALE

GKK880399Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 C7 10DB BLOWER MOTOR SUPPLY
2 Z911 10BK GROUND
