Generator (Gas) Connector End View
Generator (Gas) Connector End View

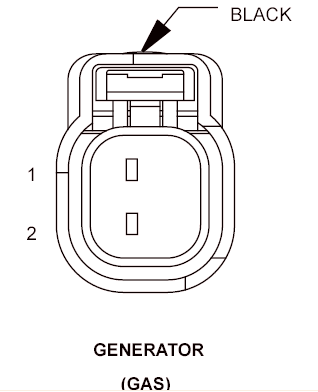

GENERATOR - BLACK 2 WAY (GAS)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
K125 16BR/DG
GEN FIELD CONTROL (LHD)
1
K125 18BR/DG
GEN FIELD CONTROL (RHD)
2
A803 18GY/RD
GEN SENSE

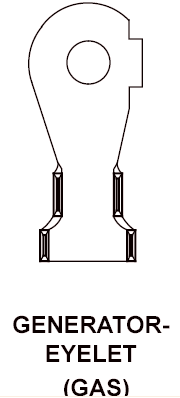

GENERATOR-EYELET - 1 WAY (GAS)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
A801 4RD/GY
FUSED B(+)
