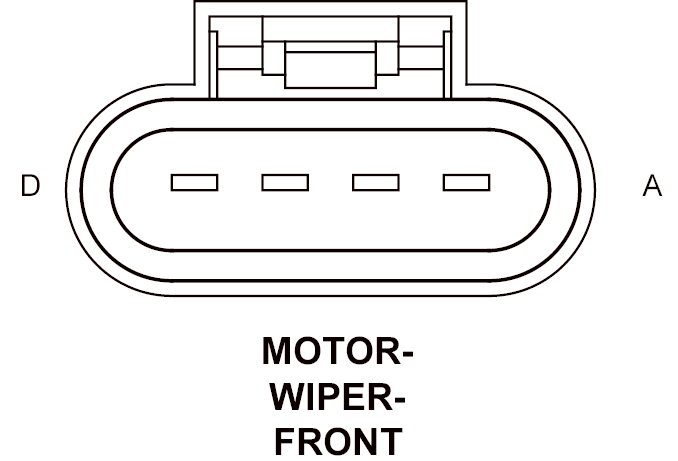

Front Wiper Motor Connector End View
MOTOR-WIPER-FRONT - 4 WAY FEMALE
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| A |
W7 20BR/GY |
FRONT WIPER PARK SWITCH SENSE |
| B |
Z908 14BK |
GROUND |
| C |
W3 14BR/WT |
FRONT WIPER HIGH/LOW RELAY LOW SPEED OUTPUT |
| D |
W4 14BR/OR |
FRONT WIPER HIGH/LOW RELAY HIGH SPEED OUTPUT |
