Engine Coolant Temperature Sensor (3.7L) Connector End View

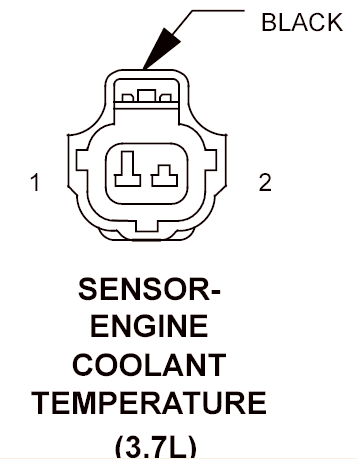

SENSOR-ENGINE COOLANT TEMPERATURE - BLACK 2 WAY (3.7L) FEMALE

GKK880297Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 K2 20VT/OR ECT SIGNAL
2 K900E 20DB/DG SENSOR GROUND
