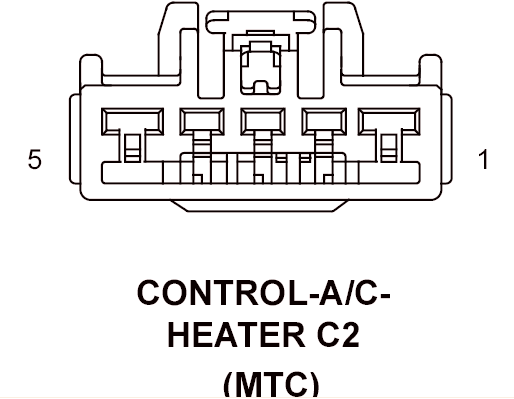

A/C Heater Control (Manual Temperature Control) Connector End View (C2)
CONTROL-A/C-HEATER C2 - 5 WAY (MTC) FEMALE
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
Z911 10BK |
GROUND |
| 2 |
C71 16DB/BR |
FRONT BLOWER LOW SPEED |
| 3 |
C72 16DB/OR |
FRONT BLOWER M1 SPEED |
| 4 |
C73 12DB/VT |
FRONT BLOWER M2 SPEED |
| 5 |
C75 12DB/GY |
BLOWER MOTOR HIGH DRIVER |
