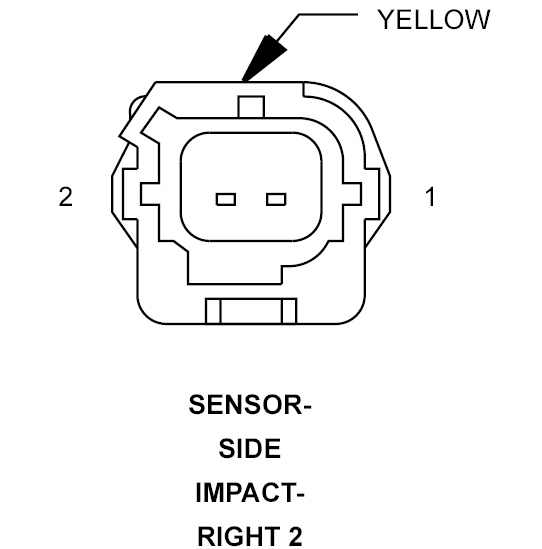

Right Side Impact Sensor 2 Connector End View

WARNING: This page is about a different car, the 2009 Dodge Caliber and 2008 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

SENSOR-SIDE IMPACT-RIGHT 2 - YELLOW 2-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	R20 20WT/LG	RIGHT SIDE IMPACT SENSOR 2 GROUND
2	R18 20LB/LG	RIGHT SIDE IMPACT SENSOR 2 SIGNAL
