Right Rear Power Window Switch Connector End View
WARNING: This page is about a different car, the 2009 Dodge Caliber and 2008 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

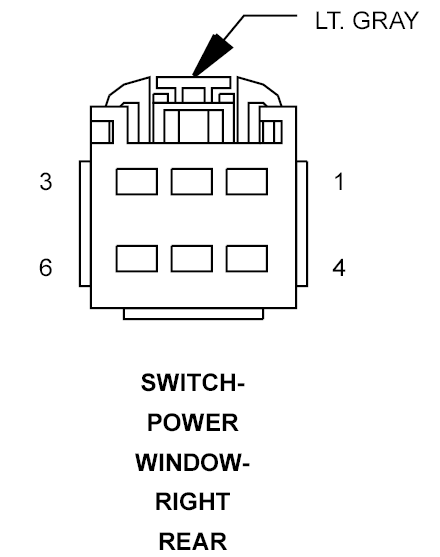

SWITCH-POWER WINDOW-RIGHT REAR - LT. GRAY 6-WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | Q612 14OR/DB | MASTER WINDOW SWITCH RIGHT REAR (DOWN) |
| 2 | Q212 14OR/VT | RIGHT REAR WINDOW DRIVER (DOWN) |
| 3 | Q112 14OR/BR | RIGHT REAR WINDOW DRIVER (UP) |
| 4 | Q412 14OR/LB | MASTER WINDOW SWITCH RIGHT REAR (UP) |
| 5 | - | - |
| 6 | Q15 14OR/RD | WINDOW LOCK OUT SWITCH OUTPUT |
