Right Front Window Motor Connector End View

WARNING: This page is about a different car, the 2009 Dodge Caliber and 2008 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

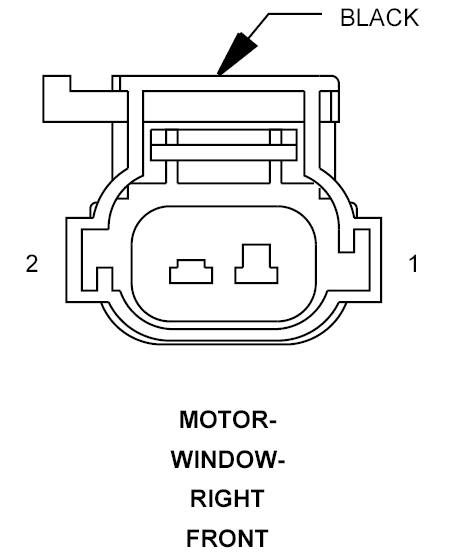

MOTOR-WINDOW-RIGHT FRONT - BLACK 2-WAY

GPM880225Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 Q22 14OR/VT RIGHT FRONT WINDOW DRIVER (DOWN)
2 Q12 14OR/BR RIGHT FRONT WINDOW DRIVER (UP)
