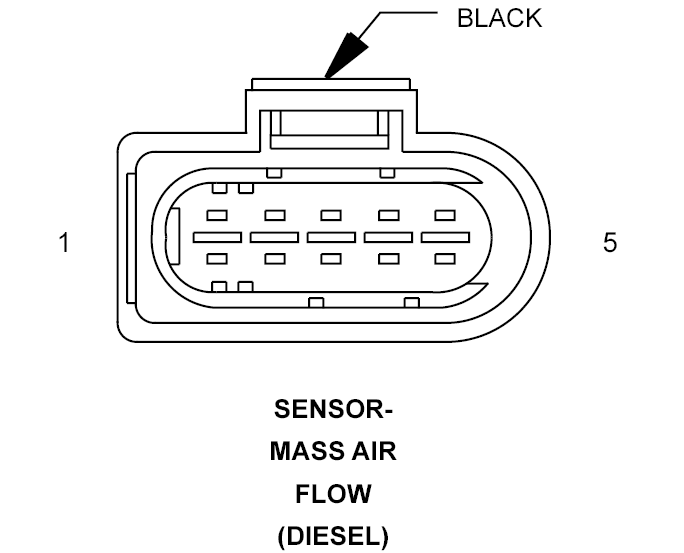

Mass Air Flow Sensor (Diesel) Connector End View
WARNING: This page is about a different car, the 2009 Dodge Caliber and 2008 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.
SENSOR-MASS AIR FLOW - BLACK 5-WAY (DIESEL)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
- |
- |
| 2 |
F344 18DB/LB |
FUSED MAIN RELAY OUTPUT (DPF) |
| 2 |
F344 20BR/GY |
FUSED MAIN RELAY OUTPUT (EXCEPT DPF) |
| 3 |
K957 20BR/OR |
MAF SENSOR GROUND |
| 4 |
F855 20PK/YL |
5 VOLT SUPPLY |
| 5 |
K157 20BR/OR |
MAF SENSOR SIGNAL |
