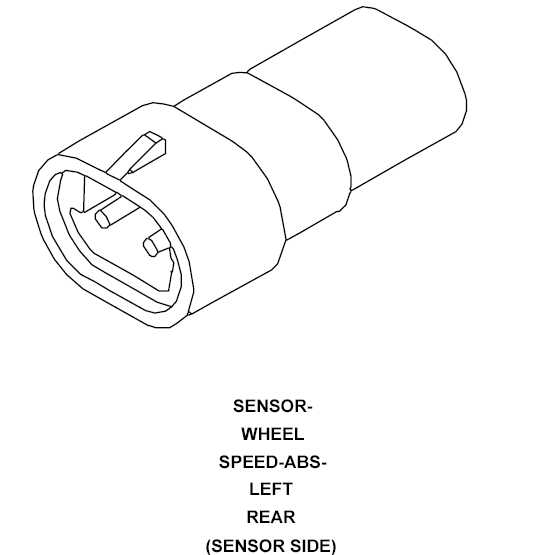

Left Rear Wheel Speed Sensor (Sensor Side) Connector End View

WARNING: This page is about a different car, the 2009 Dodge Caliber and 2008 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

SENSOR-WHEEL SPEED-ABS-LEFT REAR - 2-WAY (SENSOR SIDE)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	LG	LEFT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY
2	LG/DB	LEFT REAR WHEEL SPEED SENSOR SIGNAL
