Generator (Diesel) Connector End View

WARNING: This page is about a different car, the 2009 Dodge Caliber and 2008 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

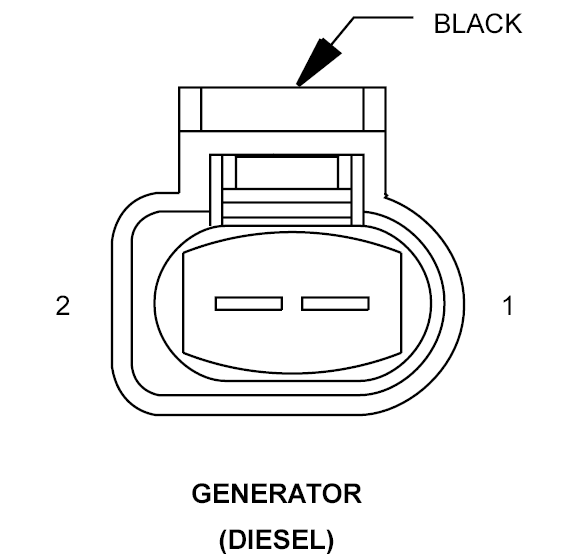

GENERATOR - BLACK 2-WAY (DIESEL)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	G329 20VT/OR	CHARGE INDICATOR SIGNAL
2	K92 20BR/YL	GEN OUTPUT SIGNAL
