Fan Radiator Cooling Module Connector End View (C1)

WARNING: This page is about a different car, the 2009 Dodge Caliber and 2008 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

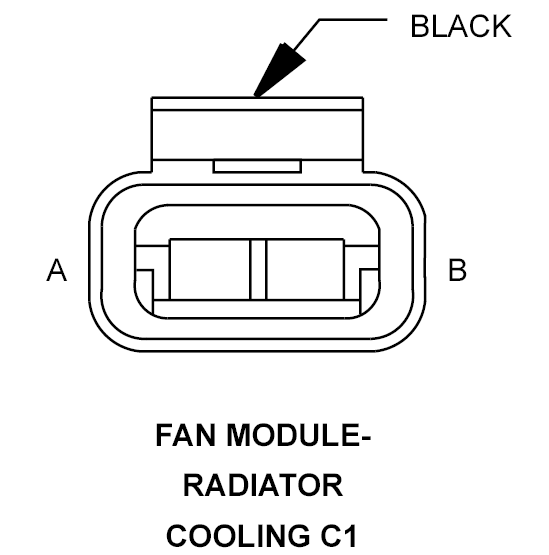

FAN MODULE-RADIATOR COOLING C1 - BLACK 2-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
A	N210 12DB/DG	SERIES/PARALLEL RAD FAN RELAY FEED
B	N23 12DB/GY	LOW/HIGH RAD FAN RELAY OUTPUT
