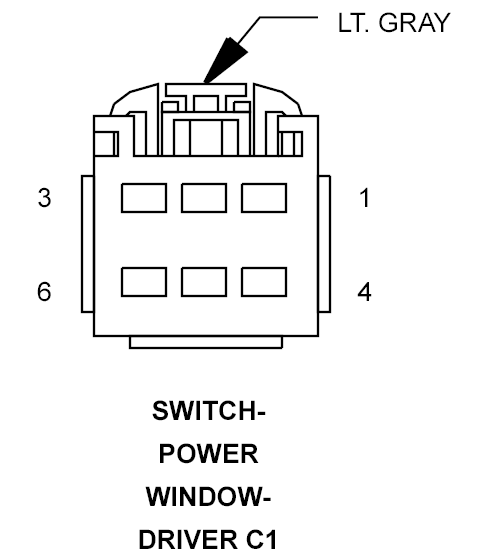

Driver Power Window Switch Connector End View (C1)
WARNING: This page is about a different car, the 2009 Dodge Caliber and 2008 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.
SWITCH-POWER WINDOW-DRIVER C1 - LT. GRAY 6-WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | Q411 14OR/WT | MASTER WINDOW SWITCH LEFT REAR (UP) |
| 2 | Q412 14OR/LB | MASTER WINDOW SWITCH RIGHT REAR (UP) |
| 3 | Q612 14OR/DB | MASTER WINDOW SWITCH RIGHT REAR (DOWN) |
| 4 | Q611 14OR/GY | MASTER WINDOW SWITCH LEFT REAR (DOWN) |
| 5 | Q26 14OR/GY | MASTER WINDOW SWITCH PASSENGER (DOWN) (LHD) |
| 5 | Q22 14OR/VT | RIGHT FRONT WINDOW DRIVER (DOWN) (RHD) |
| 6 | Q16 14OR/TN | MASTER WINDOW SWITCH PASSENGER (UP) (LHD) |
| 6 | Q12 14OR/BR | RIGHT FRONT WINDOW DRIVER (UP) (RHD) |
