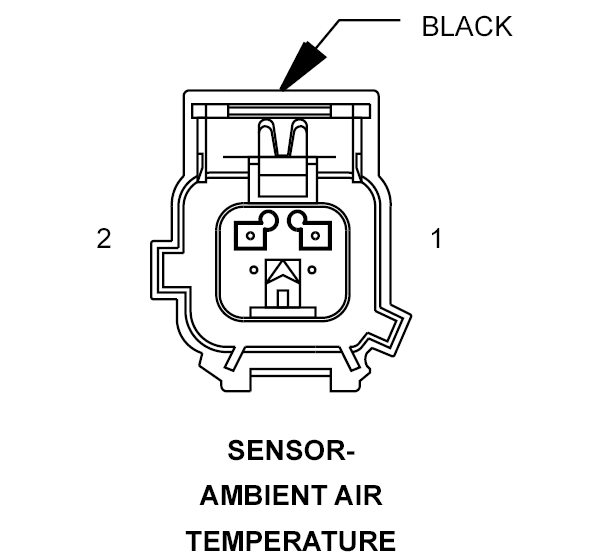

Ambient Air Temperature Sensor Connector End View

WARNING: This page is about a different car, the 2009 Dodge Caliber and 2008 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

SENSOR-AMBIENT AIR TEMPERATURE - BLACK 2-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	G31 20VT/LG	AAT SIGNAL
2	G931 20VT/DB	AAT RETURN
