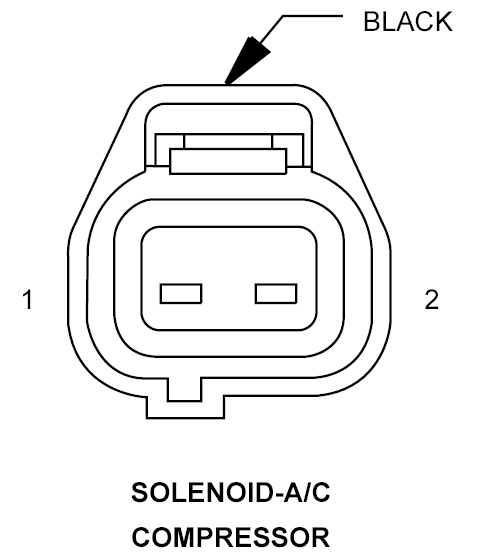

A/C Compressor Solenoid Connector End View
WARNING: This page is about a different car, the 2009 Dodge Caliber and 2008 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.
SOLENOID-A/C COMPRESSOR - BLACK 2-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
F343 18DB/LG |
FUSED MAIN RELAY OUTPUT (DIESEL DPF) |
| 1 |
F343 20DB/LG |
FUSED MAIN RELAY OUTPUT (DIESEL EXCEPT DPF) |
| 1 |
C27 20LB/WT |
A/C COMPRESSOR CONTROL (GAS) |
| 2 |
C27 20LB/WT |
A/C COMPRESSOR CONTROL (DIESEL) |
| 2 |
Z909 20BK/WT |
GROUND (GAS) |
