Home >> Jeep >> 2008 >> Liberty Limited, 4WD, Part Time >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P1593 To P2135 >> P2123-Accelerator Pedal Position Sensor 1 Circuit High >> Circuit Schematic

Circuit Schematic

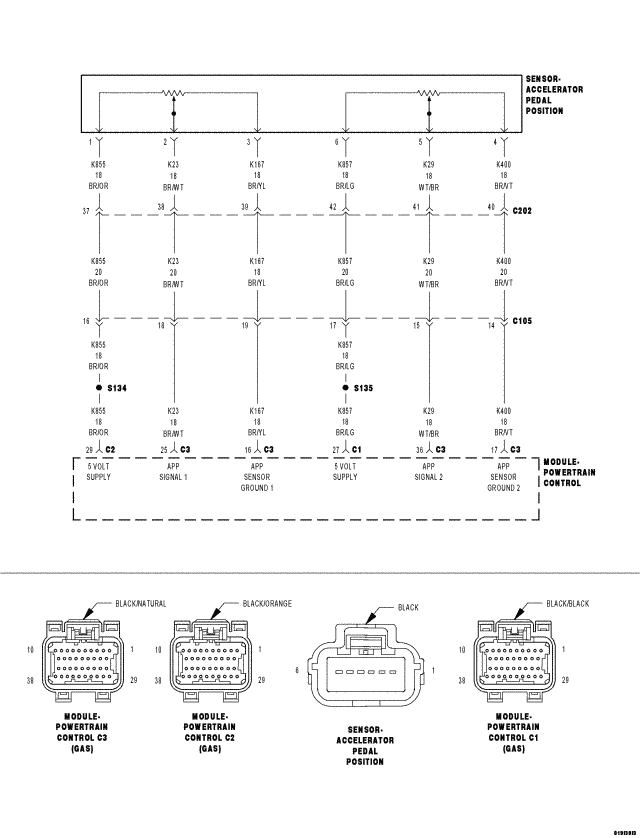

Fig 1: Accelerator Pedal Position Sensor Circuit Schematic

GC0062195

Courtesy of CHRYSLER LLC
