Home >> Jeep >> 2008 >> Liberty Limited, 4WD, Part Time >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P0420 To P0563 >> P0533-A/C Pressure Sensor Circuit High >> Circuit Schematic

Circuit Schematic

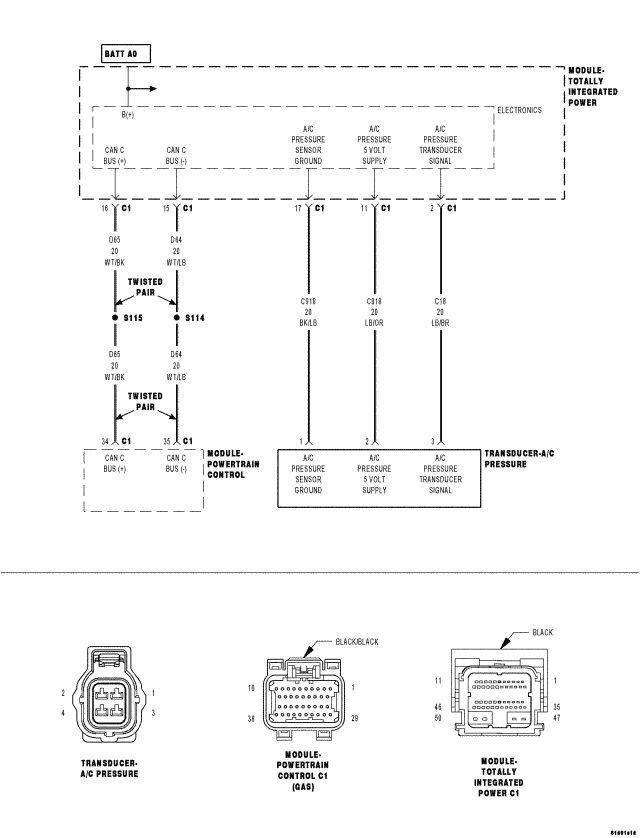

Fig 1: A/C Pressure Sensor Circuit Schematic

GC0070765

Courtesy of CHRYSLER LLC
