Home >> Jeep >> 2008 >> Liberty Limited, 4WD, Part Time >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P0420 To P0563 >> P0481-Cooling Fan 2 Control Circuit >> Circuit Schematic

Circuit Schematic

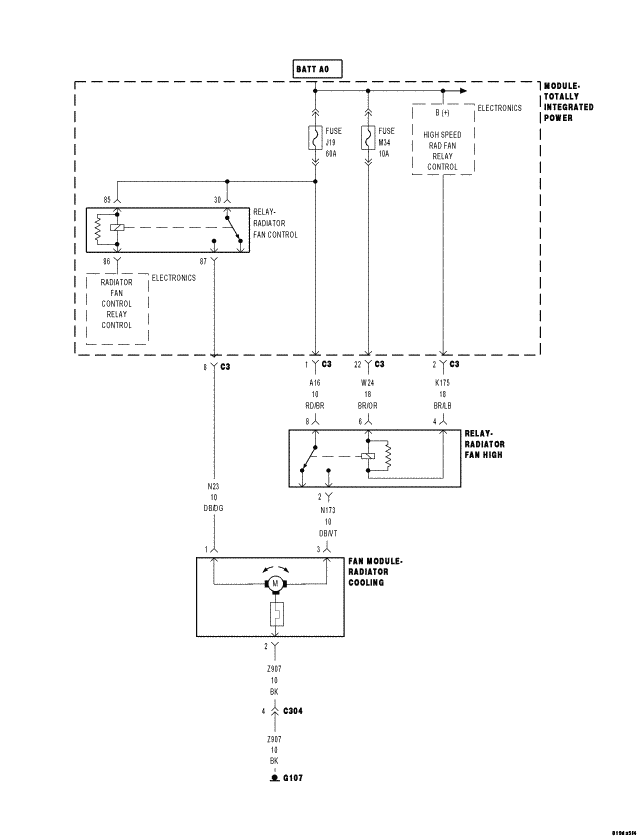

Fig 1: Cooling Fan Control Circuit Schematic

GC0062154

Courtesy of CHRYSLER LLC
