Hands Free Module

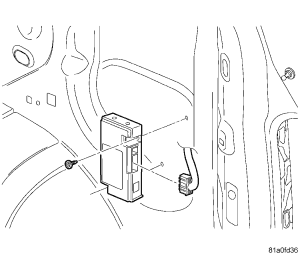

Fig 1: Removing Hands Free Module
GC0061673Courtesy of CHRYSLER LLC
  1. Disconnect and isolate the battery negative cable.
  2. Remove the right quarter trim panel. Refer to REMOVAL .
  3. Remove mounting fasteners.
  4. Disconnect electrical harness connector.
