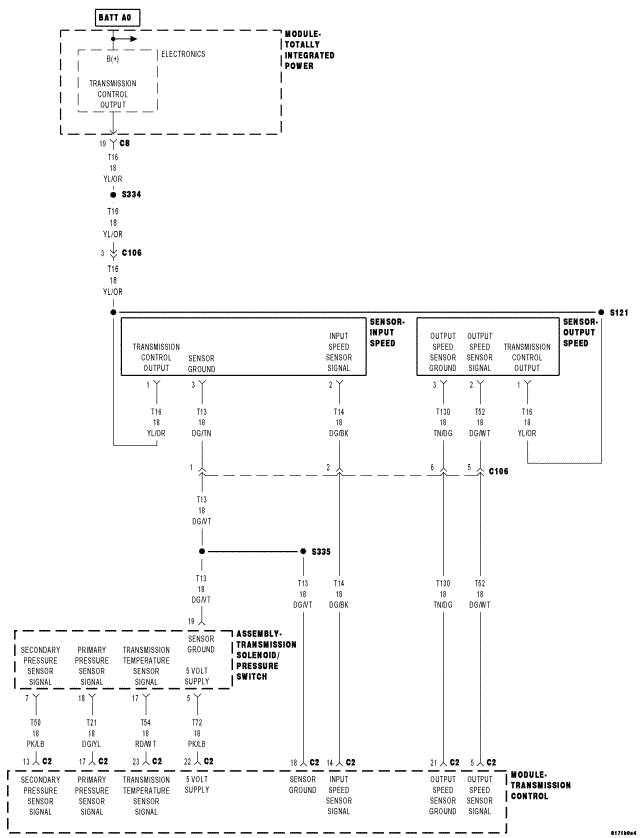

Home >> Jeep >> 2008 >> Compass Limited, AWD, Automatic CVT >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Continuously Variable Transmission (CVT) - Electrical Diagnostics >> Automatic - CVT-Electrical Diagnostics >> DTC Troubleshooting >> P1661-Sensor Ground Reference Circuit >> Circuit Schematic
