Home >> Jeep >> 2008 >> Commander Base, 4.7 N, AWD >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P0606 To P0700 >> P0645-A/C Clutch Relay Circuit >> Circuit Schematic

Circuit Schematic

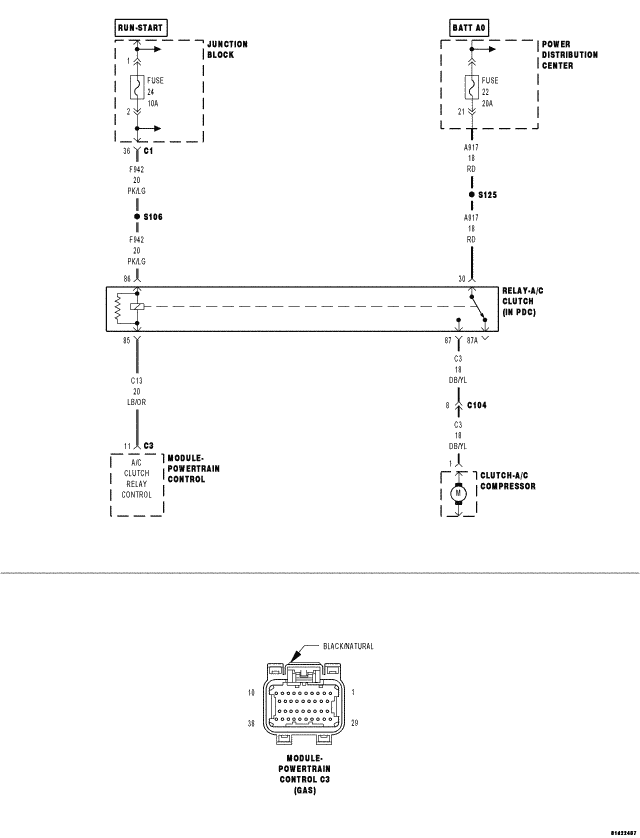

Fig 1: A/C Clutch Relay Circuit Schematic

GC0072012

Courtesy of CHRYSLER LLC
