Home >> Jeep >> 2007 >> Wrangler X, Standard >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> DTCS B1B7D To B1C27 >> B1B8F-Driver Seat Track Position Sensor Circuit Open >> Circuit Schematic

Circuit Schematic

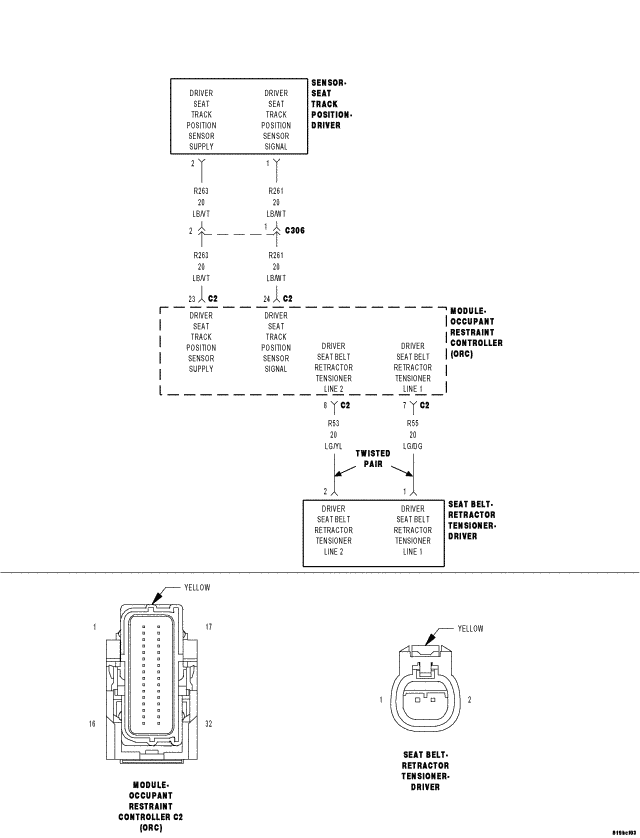

Fig 1: Driver Seat Track Position Sensor Circuit Schematic

GC0061825

Courtesy of CHRYSLER LLC
