Right Front Window Motor Connector End View

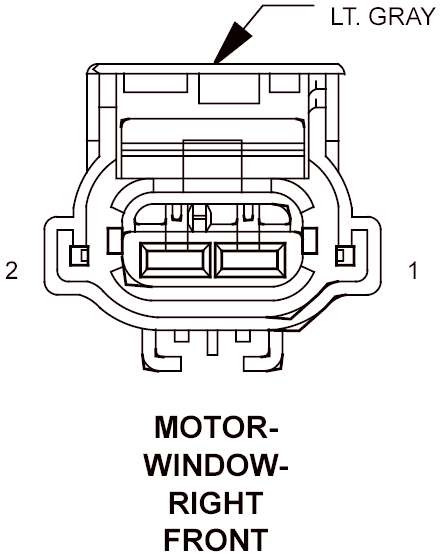

MOTOR-WINDOW-RIGHT FRONT - LT. GRAY 2-WAY

GJK780192Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 Q22 14VT/WT RIGHT FRONT WINDOW DRIVER (DOWN)
2 Q12 14BR/LB RIGHT FRONT WINDOW DRIVER (UP)
