Exhaust Gas RECIRCULATION - 2.8L Diesel: Solenoid-EGR: Installation: Installation

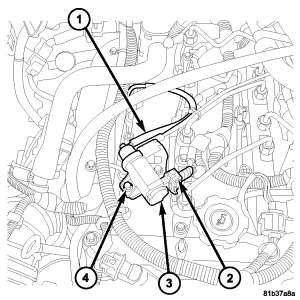

Fig 1: View Of Solenoid-EGR Components

Courtesy of CHRYSLER LLC

The EGR Solenoid (3) is located on the top of valve cover.

1. Position solenoid (3) to valve cover and install two mounting bolts (4).
2. Connect electrical connector (2).
3. Connect vacuum/pressure lines (1).
4. Install plastic engine cover.
