Front Wiper Module

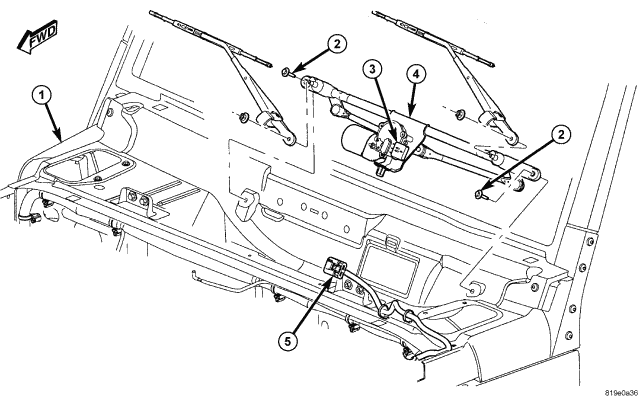

Fig 1: Removing/Installing Front Wiper Module
GC0064132Courtesy of CHRYSLER LLC
  1. Disconnect and isolate the battery negative cable.
  2. Remove both front wiper arms from the wiper pivots. See REMOVAL .
  3. Remove the cowl plenum cover/grille panel from over the front wiper module. Refer to REMOVAL .
  4. Disconnect the wire harness connector (5) from the connector receptacle for the front wiper motor (3).
  5. Remove the two screws (2) that secure the ends of the front wiper module (4) bracket to the cowl plenum.
  6. Pull the front wiper module upward to disengage the knob-like rubber isolator from the slot in the forward wall of the cowl plenum.
  7. Remove the front wiper module from the cowl plenum as a unit.
