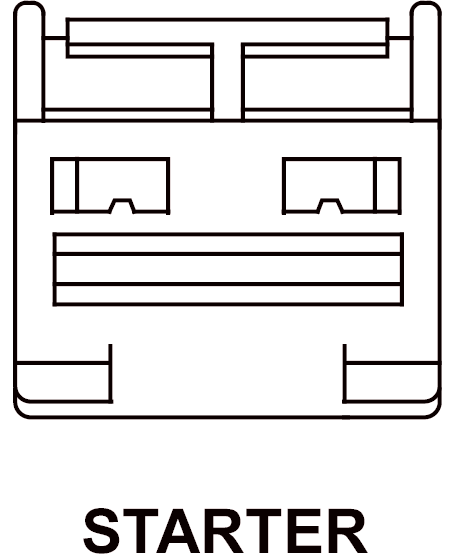

Starter Connector End View

STARTER - 1-WAY

GJK780274Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 T750 12YL/GY STARTER RELAY OUTPUT
