Module-Diesel Engine Control: Removal: Removal

WARNING: This page is about a different car, the 2007 Dodge Nitro. However, it is still accessible from the selected car via links, so may be relevant.

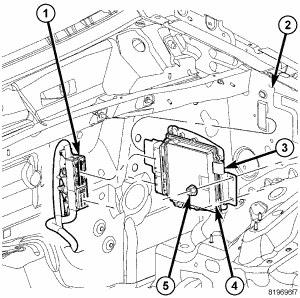

Fig 1: ENGINE CONTROL MODULE - DIESEL
GC0061536Courtesy of CHRYSLER LLC
  1. The ECM (Engine Control Module-Diesel) (4) is located in the engine compartment.
  2. Disconnect negative battery cable.
  3. Disconnect ECM electrical connectors (1).
  4. Remove ECM mounting nuts (5).
  5. Remove ECM (4) and bracket assembly (3) from vehicle.
  6. Separate ECM (4) from bracket (3).
