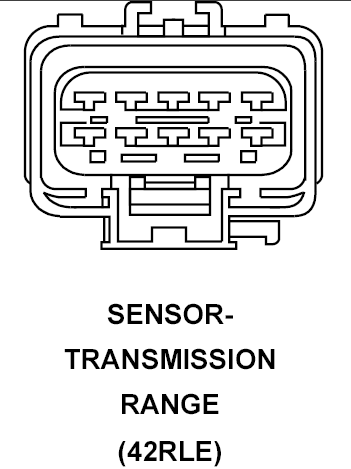

Transmission Range Sensor (42RLE) Connector End View
SENSOR-TRANSMISSION RANGE - 10-WAY (42RLE)
| CAV | CIRCUIT | FUNCTION |
| 1 | C115 20DB | FUSED IGNITION SWITCH OUTPUT (RUN) |
| 2 | - | - |
| 3 | T13 20DG/VT | SPEED SENSOR GROUND |
| 4 | T54 20DG/OR | TRANSMISSION TEMPERATURE SENSOR SIGNAL |
| 5 | - | - |
| 6 | L10 20WT/GY | BACKUP LAMP FEED |
| 7 | T1 20DG/LB | TRS T1 SENSE |
| 8 | T3 20DG/DB | TRS T3 SENSE |
| 9 | T42 20DG/YL | TRS T42 SENSE |
| 10 | T41 20YL/DB | TRS T41 SENSE (P/N) |
