Trailer Tow Relay Connector End View

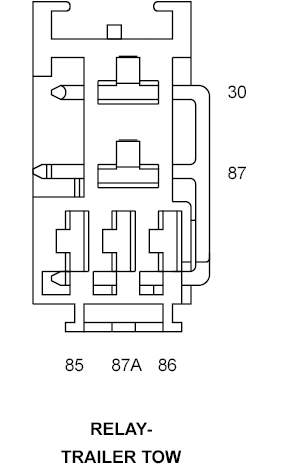

RELAY-TRAILER TOW

GKJ780220Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
30 A100 14RD/VT FUSED B(+)
85 Z933 14BK GROUND
86 F302 20GY/PK FUSED IGNITION SWITCH OUTPUT (RUN)
87 A917 14RD TRAILER TOW RELAY OUTPUT
87A - -
