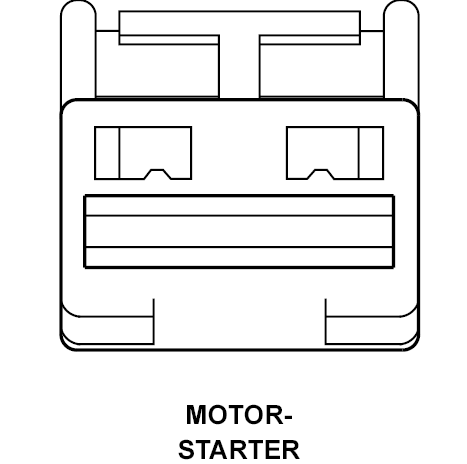

Starter Motor Connector End View

MOTOR-STARTER - 1-WAY

GKJ780326Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 T750 12YL/GY ENGINE STARTER MOTOR RELAY OUTPUT
