Right Front Fog Lamp Connector End View

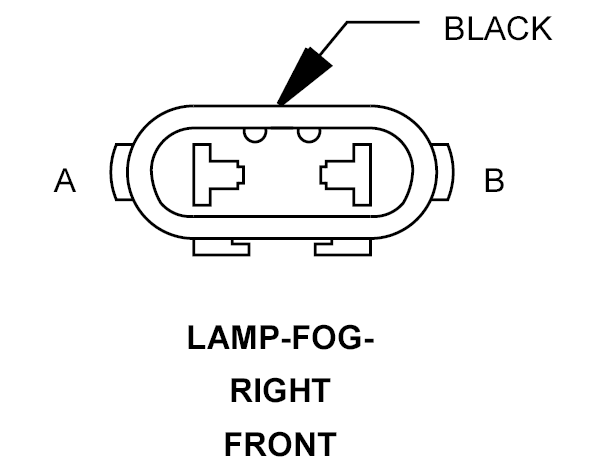

LAMP-FOG-RIGHT FRONT - BLACK 2-WAY

GKJ780142Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
A Z932 16BK GROUND
A Z932 16BK GROUND (EXPORT)
B L89 16WT/YL FRONT FOG LAMP RELAY OUTPUT
