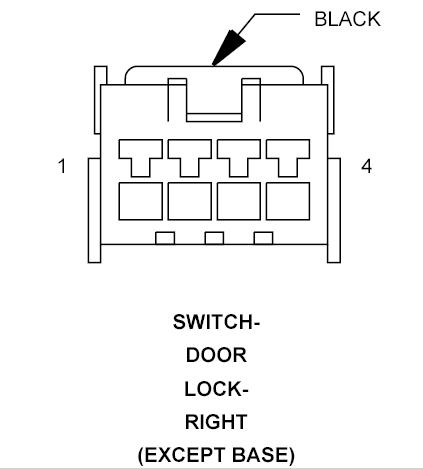

Right Door Lock Switch (Except Base) Connector End View

SWITCH-DOOR LOCK-RIGHT - BLACK 4-WAY (EXCEPT BASE)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	P36 20TN/DB	DOOR LOCK SWITCH MUX
2	-	-
3	-	-
4	P37 20LG/TN	DOOR LOCK SWITCH GROUND
