Right Courtesy Lamp Connector End View

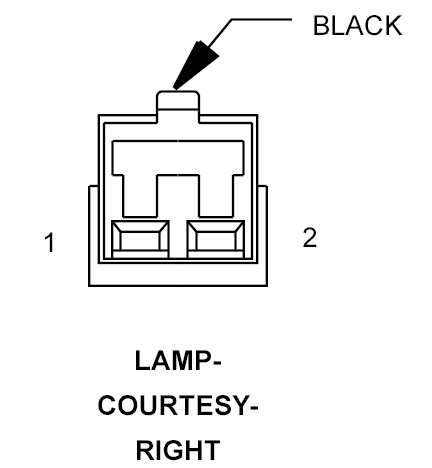

LAMP-COURTESY-RIGHT - BLACK 2-WAY

GKJ780139Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 A908 20RD FUSED B(+)
2 Z327 20BK/WT GROUND
