Rear Power Outlet Connector End View

POWER OUTLET-REAR - 3-WAY

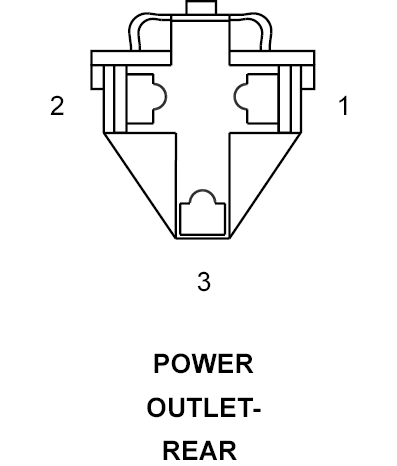

GKJ780213Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 A305 16RD/LB FUSED B(+)
2 - -
3 Z934 16BK GROUND
